按鈕開關又稱控制按鈕，是一種手動且一般可以自動復位的低壓電器。按鈕通常用于電路中發出啟動或停止指令，以控制電磁起動器、接觸器、繼電器等電器線圈電流的接通和斷開。
按鈕開關是一種按下即動作，釋放即復位的用來接通和分斷小電流電路的電器。一般用于交直流電壓440V以下，電流小于5A的控制電路中。
照明按鈕開關RPS

•  Rating：30VDC 0.1A
•  Contact Resistance：50mΩ Max
•  Insulation Resistance：100MΩ Min(250VDC)
•  Dielectric Strength：250VAC（50/60Hz for 1 min）
•  Operating Force：160±80g
•  Electrically Life：100,000 cycles
•  Operating Temperation Range：-20℃~+70℃
•  Operating Mode：A：Self-Lock B：Non-Lock

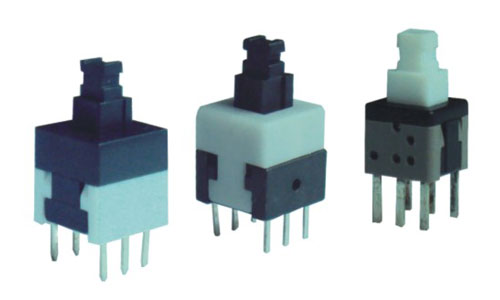

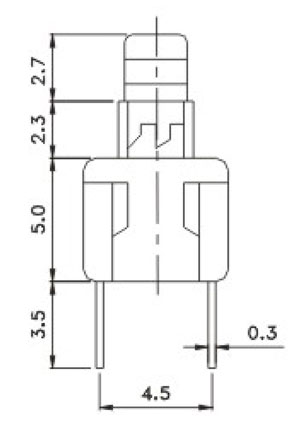

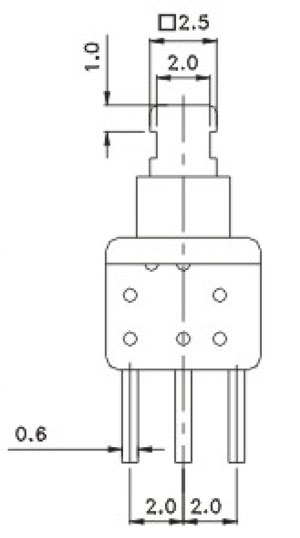

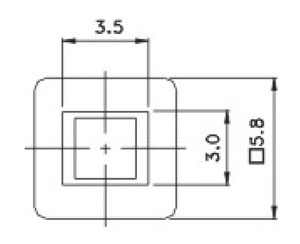

      照明按鈕開關RPS實拍圖      照明按鈕開關RPS結構圖            開關RPS結構圖             RPS結構圖



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electrically Life Operating Temp. Operating Mode PDF下載
RPS58A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS58B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS581A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS581B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS582A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS582B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS60A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS60B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS70A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS70B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS70A-1(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS70B-1 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS80A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS80B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS851A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS851B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS852A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS852B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS8513A(Self-lock) 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
RPS8513B 30VDC 0.1A 50mΩ Max 100MΩ Min(250VDC) 250VAC 50/60Hz for 1 min 160±80g 100,000 cycles -20℃~+70℃ A:Self-Lock B:Non-Lock 暫無
