主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 發光輕觸開關 ? R590B ?

小型帶燈輕觸開關為集輕觸開關內置發光LED燈復合式開關，具有外觀絢麗色彩多樣化，可以符合波峰焊與回流焊，產品常規用于筆記本電腦，家電，電子電器控制按鈕功能。
帶燈輕觸開關R590B

•  Rating：12VDC 50mA
•  Contact Resistance：100mΩ Max
•  Insulation Resistance：100MΩ min(250VDC)
•  Dielectric Strength：250VAC 50/60Hz FOR 1 min
•  Operating Force：160±50g/250±80g
•  Electric Life：100,000 cycles
•  Operating Temperature Range：-20℃ ~ + 70℃
•  Travel：0.25±0.1 mm

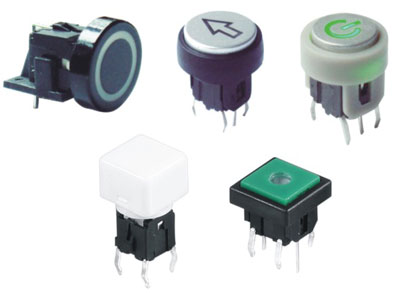

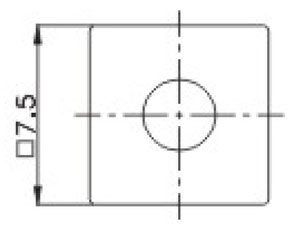

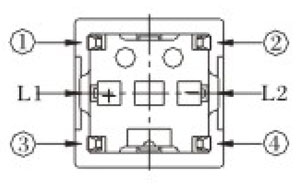

 帶燈輕觸開關R590B實拍圖     帶燈輕觸開關R590B結構圖         開關R590B結構圖       R590B結構圖



Part Number Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Electric Life Operating Temperature Range Travel PDF下載
R590B-101L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-101 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-102L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-102 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-111L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-111 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-112L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-112 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-203L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-203 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-204L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-204 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-223L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-223 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-224L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-224 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-253L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-253 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-254L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-254 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1810L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1810 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1814L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1814 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-141L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-141 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-142L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-142 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-140L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-140 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-108L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-108 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1013L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1013 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-178L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-178 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1713L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1713 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1010L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1010 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1014L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-1014 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-107L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-107 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3011L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3011 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3311L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3311 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3012L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3012 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3612L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-3612 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-305L(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-305 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-2RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-2R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-203RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-203R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-101RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-101R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-107RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-107R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-142RL(With LED) 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-142R 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
R590B-04□L-□□ 12VDC 50mA 100mΩ Max 100MΩ min(250VDC) 250VAC 50/60Hz FOR 1 min 160±50g/250±80g 100,000 cycles -20℃ ~ + 70℃ 0.25±0.1 mm 暫無
