主頁 ? 產品中心 ? 其它產品 ? 微動開關Switch ? 發光輕觸開關 ? R2900A ?

小型帶燈輕觸開關為集輕觸開關內置發光LED燈復合式開關，具有外觀絢麗色彩多樣化，可以符合波峰焊與回流焊，產品常規用于筆記本電腦，家電，電子電器控制按鈕功能。
帶燈輕觸開關R2900A

•  Pole-Position：Momentary Type,SPST with LED
•  Contact Rating：MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC
•  Contact Resistance：200Ωmax，5VDC;1mA,by Method of Voltage DROP
•  Insulation Resistance：100MΩ min.100VDC for 1 minute
•  Dielectric Strength：Breakdown is not Allowable;250 VAC for 1 Minute
•  Operating Force：125±35gf
•  Operating Temperature Range：-20℃ ~70℃
•  Operating Life：300,000 cycles
•  Total Travel：1.3±0.3mm

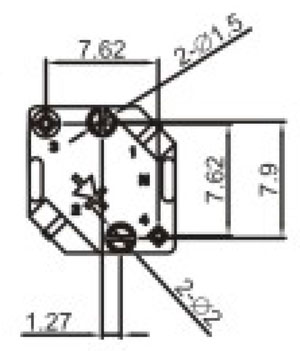

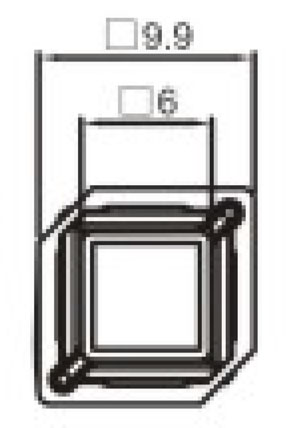

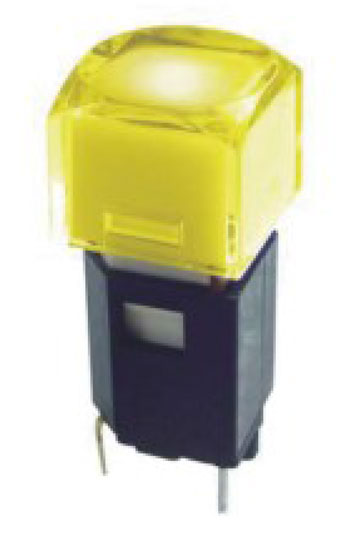

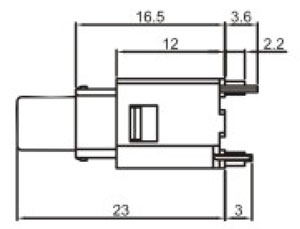

      帶燈輕觸開關R2900A實拍圖           帶燈輕觸開關R2900A結構圖          帶燈輕觸開關結構圖         R2900A結構圖



Part Number Contact Rating Contact Resistance Insulation Resistance Dielectric Strength Operating Force Operating Temperature Operating Life Total Travel PDF下載
R2900A-C1-NY-□□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
R2900A-C2A-NW-□□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
R2900A-C2-NB-□□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
R2900A-C3-RW-□□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
R2900A-C4-TW-B□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
R2900A-C2A-WW-□□-V MAX:1mA,20VDC or 5mA,5VDC MIN:1mA,5VDC 200Ωmax，5VDC;1mA,by Method of Voltage DROP 100MΩ min.100VDC for 1 minute Breakdown is not Allowable;250 VAC for 1 Minute 125±35gf -20℃ ~70℃ 300,000 cycles 1.3±0.3mm 暫無
